HPT AG-PX21122802 Automated Flap Barrier Turnstiles
Product Description
HPT AG-PX21122802 flap barrier gates are a type of security system that are commonly used in various public areas such as airports, train stations, and office buildings. These gates are designed to control and regulate the flow of individuals entering and exiting a specific area by restricting access to only authorized personnel.
Flap barrier gates consist of two or more barriers that swing open and close in a controlled manner as individuals approach them. These gates are typically equipped with sensors that detect the presence of a person and automatically open the barriers, allowing them to pass through. Once the individual has passed through, the barriers automatically close again to prevent unauthorized access.
Flap barrier gates provide an efficient and effective way to manage the flow of individuals in and out of a building or specific area, ensuring that only authorized personnel are given access. This type of security system can help to boost safety and security in crowded public spaces, making them an essential part of modern security infrastructure.
Specification
| Specification | |

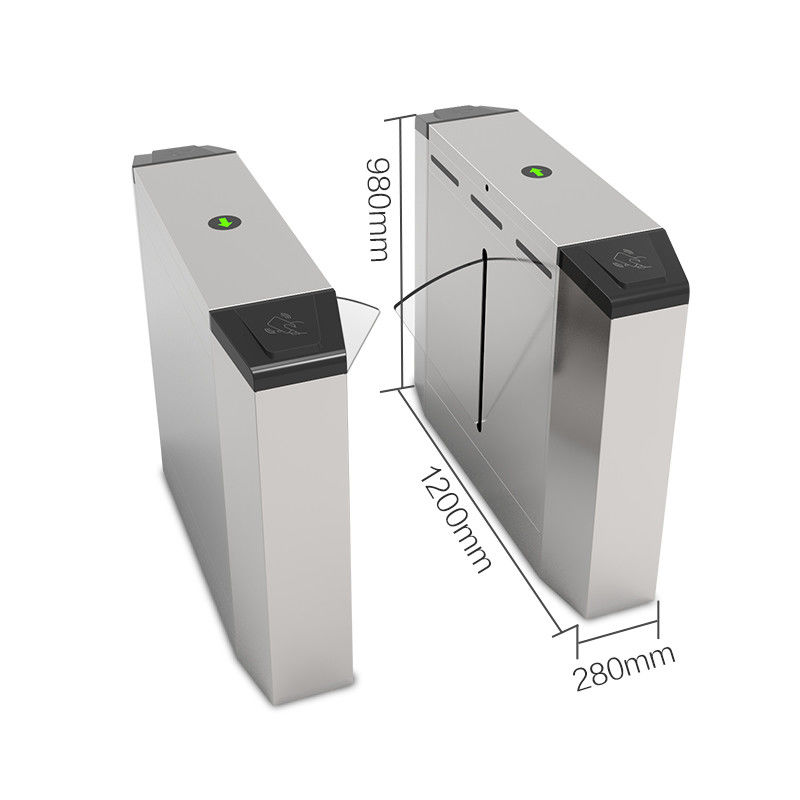

| Product Size | 1200*280*960mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.2mm+body1.0mm |
| Passage Direction | Single directional/Bi-directional |
| Passage Width | 550MM |
| Sensor | 3 pairs of active infrared intrusion detector |
| Throughput Rate | 30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 4.2A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brush/ Brushless DC Motor |
| Mechanism | Half Height Flap Gate Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| LED | Single/ Triple color LED (optional) |
| Acoustic Alarm | Buzzer Alarm (optional) |
Functionality
1. The flap barrier gate checks for errors when it is opened and sounds a warning siren if any are found.
2. At the main control panel, the operating state of the flap gate can be predetermined.
3. There is a stop-pinching feature. When the turnstile arms are about to close, the gate will automatically open to safeguard the travelers as well as the gate itself.
4. The flap barrier turnstile gate has an audible and visible alarm. When the gate is in standby mode, its LED is blue. When someone treads on it, green light comes out of it. When someone tries to use the gate route without permission, it flashes red. To alert persons of the authorization violation, the bell on the gate beeps.
5. The gate also incorporates "Anti-Collision" technology, allowing the driving motor to halt and attempt self-defense in the event that something slams into it too violently.
6. The data from the turnstiles is synchronized using a variety of channels.
7. If the visitor does not pass within the allotted time, the system will automatically withdraw their access permission, and it will by default return to the "waiting for open" status after 6 seconds. The user can choose the amount of time they wish to wait before the gate reopens using the "waiting duration" parameter.
8. Whenever the electricity is turned on and off, the turnstile will automatically open and close.
9. It can be connected to a variety of readers, including those that make use of RFID, facial recognition, and fingerprint recognition.
10. In order to limit entry and leave, a walkway may be one way or two ways.
Customization Available
To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
